Standard Mechanical Room Thermostat

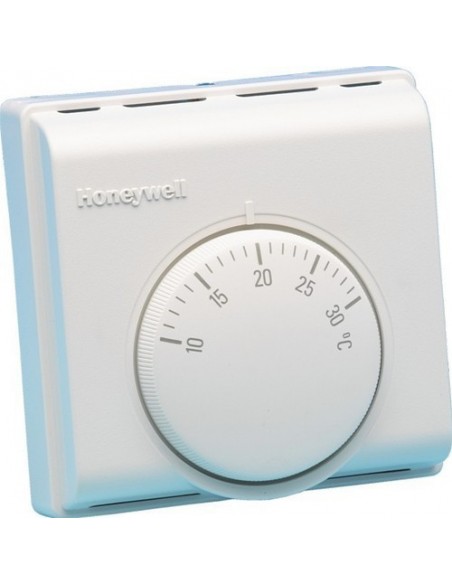

Honeywell Room Thermostat T6360B:

The Honeywell T6360B is a basic mains voltage Room Thermostat that has been specifically designed to give you automatic control of your home's central heating system temperature.

It can be used to directly switch a circulating pump or boiler, or to operate spring return and motor open/motor close zone valves.

The T6360 can switch electrical heating loads up to 10A and is also able to cool applications.

Key Features:

• Dual diaphragm temperature sensing element
• Suitable for surface or switch box mounting
• Heat anticipator for close temperature control
• 10 to 30C setpoint range
• Change-over contact switching (cooling loads)
• Double insulated

T6360B Specifications:

• Switch/contact rating: SPST. IP30. 10A.
• Temp. range: 10°-30°C.
• H x W x D: 84 x 84 x 37mm.
• Manufacturers Code :  T6360B1028
